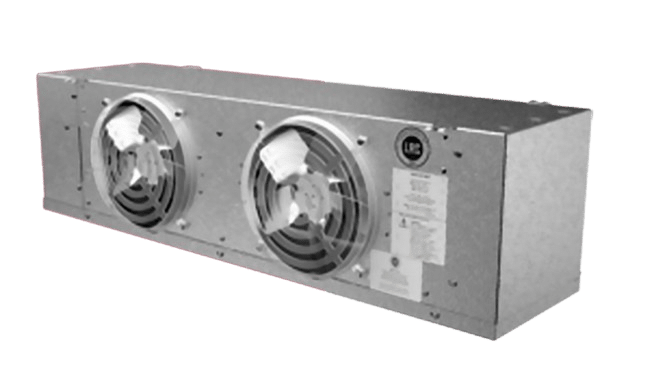

Slim Line Air or Water Cooled Evaporator Unit (SLA Series)
Slim Line Air (SLA) Systems provide low velocity air flow in noise sensitive locations. These are ideal for medium to large wine cellars and long-term storage. These evaporators have variable speed fan controls allowing more adjustment
making them an idea choice where noise and stable humidity is a concern.
Wine Cellar Refrigeration Unit Features
• ETL Certified
• Hinged drain pan for easy maintenance
• Aluminum Cabinet is rust-proof. Stainless Steel cabinets are available for harsh environments
• Universal AXV and liquid line solenoid valve installed standard
• High-performance staggered coils
• Electrical panel is pre-wired using screw-type terminal blocks
• Ultra-efficient ECM motors
• Pre-installed valves eliminate additional wiring
• Coil is coated with water-based epoxy to reduce corrosion

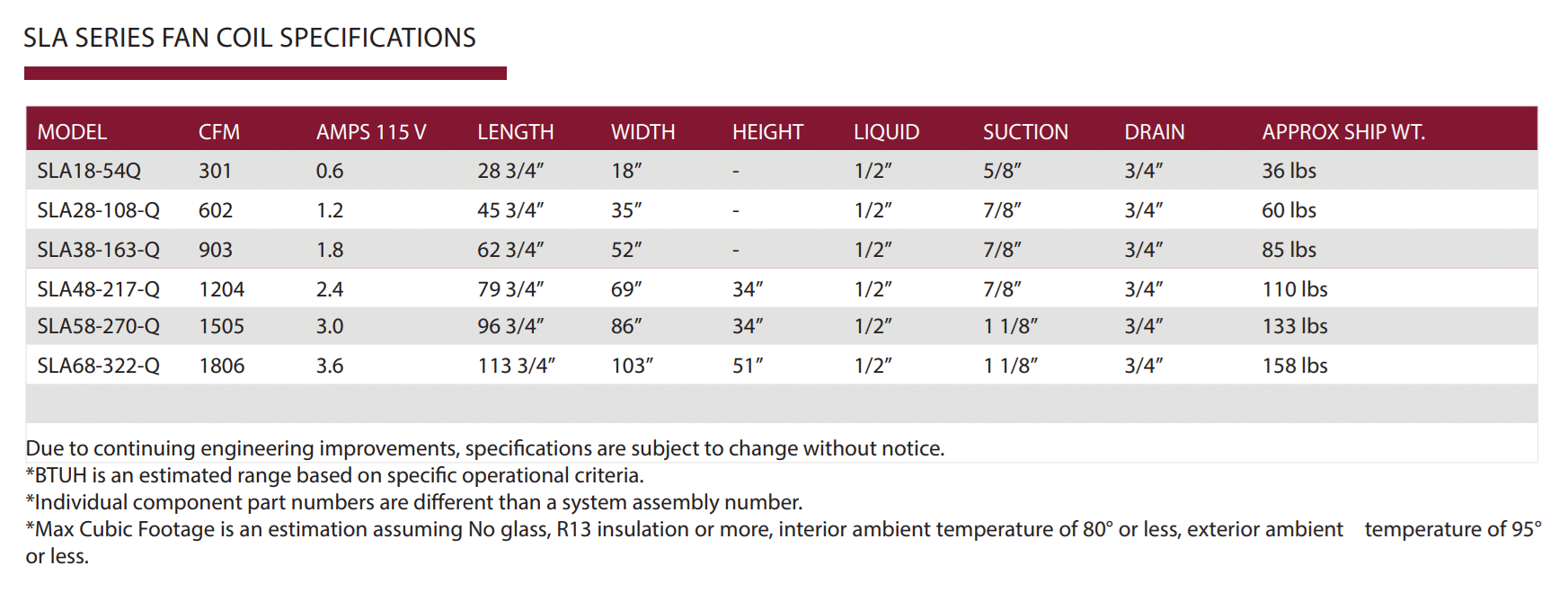

Available Wine Cellar Refrigeration Options
The SLA Series is available in capacities from 6,600 to 40,000 BTU per hour are used with various direct expansion refrigerants. 230v available by order.
• Custom circuiting for Glycol or chilled water applications
• Eco-friendly water-cooled condensing units available
• Stainless steel cabinets for high-corrosive environments
Click here to download the full PDF version of this page!

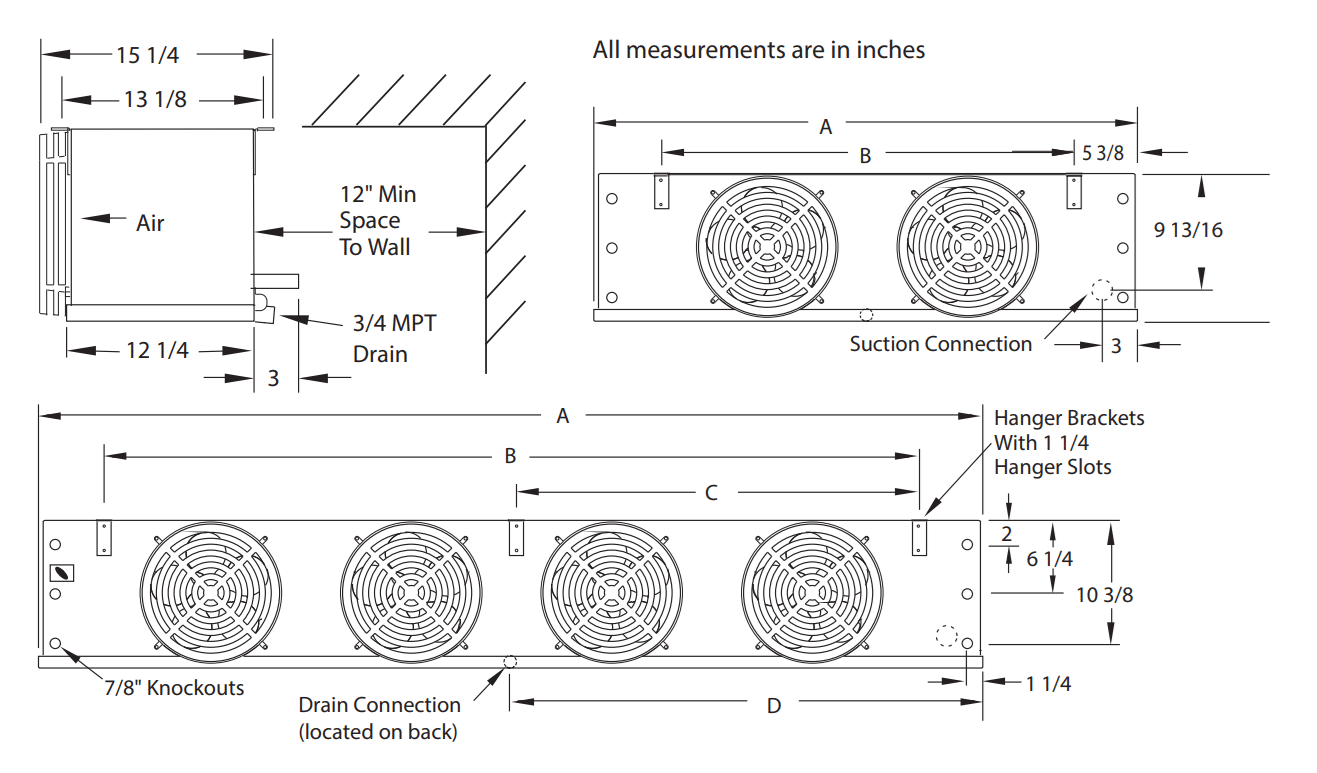

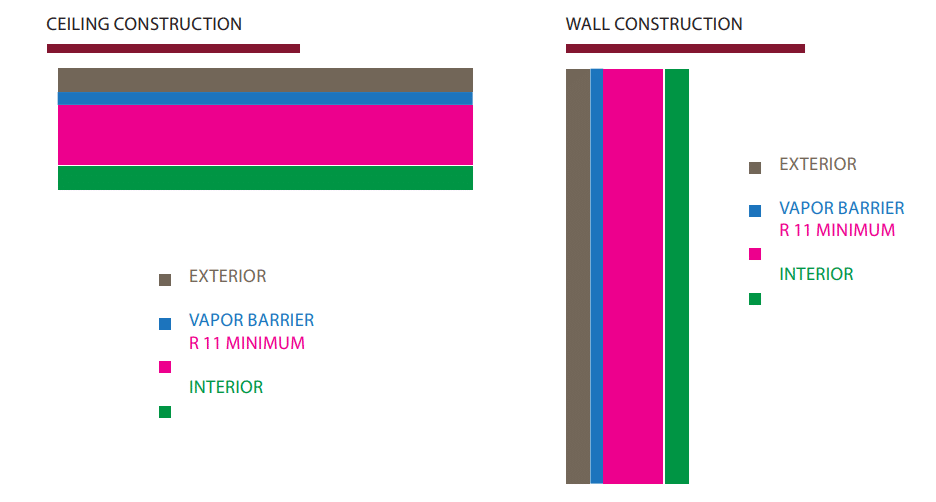

Mounting Diagrams
SLA Cooling System Typical Installation
• Always plan for future maintenance and service. Units should have easy access or access panels. Grills, boxes, or racking nearest the evaporators should be removable.
• Standard Line Sets should be 50’ or less. Over 50’ and oil separator and suction line accumulator is required. Extended runs may require larger line sizes and 3 oz of oil must be added for every 10’ feet over 35’. Insulate suction line, liquid line insulation is optional.
• Excessive number of turns in line set will cause refrigerant flow problems. This could cause early compressor failure. Suction line accumulators are recommended on all applications. Required if working lower than the normal 55°-65°F operating range from wine cellar.
• Drain line must flow with gravity to drain or pump.
• The system is controlled by a pump down control system. There is no control wiring between thermostat and condensing unit.
• The line connections at Fan Coil and Condensing Unit may not be the same as the required line sizes dictated for the system capacity.
• BTUH Capacity calculated at 17° TD, 38° ST, 55° Room
• The use of oversized condensing units can lead to poor wine room evaporator performance and possible system failure. When installing our wine room evaporator, it is recommended that condensing units be sized less than or equal to the evaporator capacity.
• USCS Cooling units are designed to minimize noise and vibration. To reduce and eliminate amplification of existing noise or vibration, extreme care must be taken during installation to identify contributing factors in the environment. Please refer to supplied installation instructions and use proper installation materials to minimize acoustic impact.
Refer to complete installation instructions for additional information or contact our Tech Line at 562-728-5774!
